KLAY Tiles and Façades is the proud Australian agent for German manufacturer Agrob Buchtal including the range of Agrob Buchtal Ceramic Façade Systems. Commencing operations in 1755, Agrob Buchtal is one of the oldest and largest manufacturers of high quality ceramic building products in the world. With 50 years of experience in façade engineering, Agrob Buchtal has become a world leader in the manufacture and supply of high quality Stoneware Ceramic Panels for building façades and various civil infrastructure applications.
The rear-ventilated curtain wall ceramic façade systems by Agrob Buchtal provide an unparalleled mechanically fixed solution for building facades and civil infrastructure projects. The systems offer a cost effective, highly durable, non-combustible maintenance free cladding which is suitable for both new builds and renovations. The systems are certified as completely non-combustible under AS1530.1. The Agrob Buchtal Ceramic Façade System comprises the three main systems known as KeraTwin®, KeraShape® and KerAion®.
All three systems are manufactured using an advanced extrusion process and include Agrob Buchtal’s revolutionary Hytect surface technology. The Hytect coating which utilises titanium dioxide as the raw ingredient for a photo-catalytic physical reaction, releases dissolved oxygen at the surface of the ceramic material for its lifetime, which provides a unique material that is self-cleaning, anti-graffiti, anti-bacterial and breaks down airborne industrial pollutants.
- The material is completely non-combustible being manufactured at temperatures of about 1260°C. The material has been tested by the CSIRO and is non-combustible under AS1530.1
- The Hytect coating which utilises titanium dioxide as the raw ingredient for a photo-catalytic physical reaction, provides a maintenance fee, self-cleaning, anti-graffiti & anti-bacterial surface ensuring a long lasting without the need for expensive and onerous maintenance requirements
- The ceramic facades are maintenance free, carry generous credible warranty periods with an expected design life well in excess of 50 years
- Completely light and colour-fast with a large range of surface textures and colours, including matt, stain matt and gloss finishes, stone, concrete, timber and metallic surface finishes
- An array of formats varying from 150-600mm panel heights with panel lengths completely tailored to each project in 1mm increments up to a maximum of 1800mm lengths
- Unlimited application possibilities due to a large range of mechanical fixing options, accommodating both horizontal, vertical and overhead solutions, including a range of conventional bond patterns
- A range of standard details for use by architects and engineers including a large range of options to finish off external building corners
- Matching 3-dimensional ceramic baguette materials for creating visually attractive screens
- Suitable for both refurbishment and new buildings

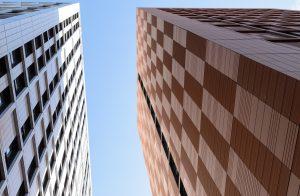

is predominately a rectangular panel format, available in 11 different surface profiles, panel formats up to 1800x600mm and in excess of 100 different colours and finishes. The range includes 15 different panels heights starting from 150mm through to 600mm in 25mm increments. Panel lengths are customised for each individual project and are available in 1mm increments. Finishes include matt, stain matt and gloss finishes, stone, concrete, timber and metallic finishes. The system allows for unlimited application possibilities due to a large range of mechanical fixing options, accommodating both horizontal, vertical and overhead solutions, including a range of conventional bond patterns.
is a range of glazed and unglazed stoneware ceramic tubular “baguettes” which provide designers with an array of options to incorporate 3 dimensional screening elements to a façade design. KeraShape® is available in square, rectangular and elliptical laminar profiles across 70 different colours from the SpectraView and Natura colour series. Mounting configurations include solutions for both vertical and horizontal orientations. KeraShape® can either be used as a stand-alone façade or as façade elements in combination with KeraTwin® Panels
is the original large format ceramic panel which has been used worldwide for decades. An 8mm thick panel ensures a lightweight solution which is available in a range of large square and rectangular formats in a range of colours and finishes which include matt, stain matt and gloss colours, stone, concrete, timber and metallic finishes.
Relevant Projects
Coburg & Moreland Railway Stations
Coburg & Moreland Railway StationInfrastructure Designed by Wood Marsh, Coburg and Moreland stations form part of the Bell to Moreland
Sydney Adventist Hospital
Sydney Adventis HospitalEducation & Health Set in the leafy bushland of Wahroonga, at 100 years old the Sydney Adventist Hospital
Macksville District Hospital
Macksville District HospitalEducation & Health Macksville is a small town along the Pacific Highway in New South Wales, half way
Relevant Journal Articles
The Game-Changing Hytect Ceramic Surface: Lowering Maintenance and Enhancing Well-Being
The Game-Changing Hytect Ceramic Surface: Lowering Maintenance and Enhancing Well-Being
5 Key Trends Shaping the Future of Building: BAU, Munich 2023
The five key trends identified by BAU organizers for the future of building; climate change, digital transformation, homes of the future, resources and recycling, and modular building, are driving the industry towards sustainable and innovative solutions.
Graffiti versus Ceramic façade panel – Who wins?
Non-combustible
Certified to AS1530 Part 1
Low/no maintenance
Ceramic surfaces are durable, light/colour-fast, anti-graffiti and self-cleaning due to Hytect technology.
Mechanically fixed
A diverse range of mechanical fastening solutions including horizontal, vertical, overhead and a range of brick bond façade layouts that provide structural integrity over the life of the facade
Complete design flexibility
Ceramic panels are available in a plethora of colours, surface finishes and formats including custom manufacture. Surface options include a range of 3D profiles, glazed and unglazed tile, stone, timber or metallic look finishes. Special pieces ensure corners, reveals and other façade elements are detailed to perfection.
Design service
A team of planning and design professionals are available to assist project architects and façade engineers realise the perfect façade solution.
Thermal protection
In combination with mineral insulation and an innovative sub-structure, impressive U-values can be achieved.
Noise Isolation
A combination of mineral insulation and the dense ceramic cladding enables sound reductions of up to 14dB.
Easy Panel Replacements
Vandal/impact damage can be addressed on a localised basis through individual panel replacements
Rapid installation
The modular system enables rapid installation in both low, medium and high rise applications using a range of conventional access methods.
Credible Long-Term Warranties
Warranties are provided by a long-standing reputable manufacturer.
Meet today’s non-combustibility requirements and enhance the status of your building through the use of Agrob Buchtal non-combustible KeraAion facades.
Contact us today for further information.
